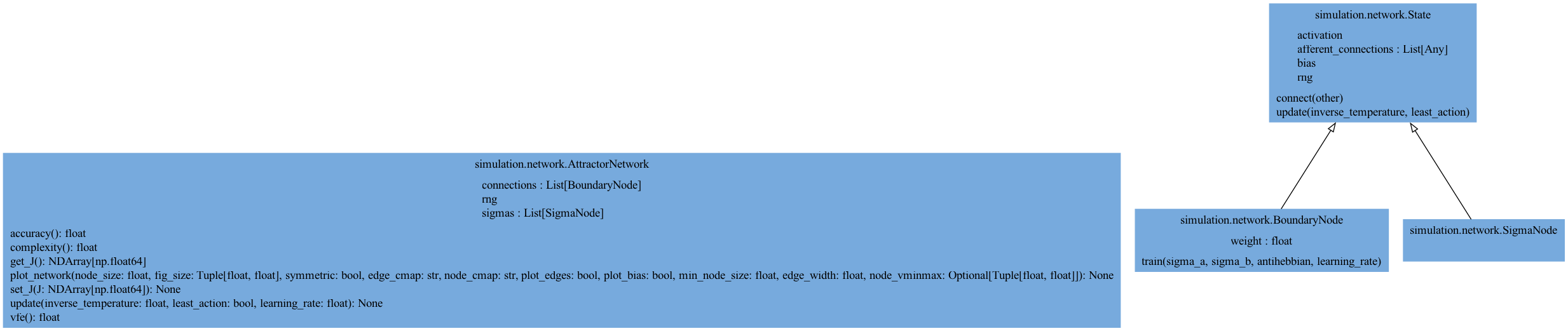

UML diagram of the network implementation - Self-orthogonalizing attractor neural networks emerging from the free energy principle

UML diagram of the network implementation

The implementation favors clarity over efficiency - it implements both σ and boundary states as separate classes, and is not optimized for performance. A crucial detail for the implementation of the learning rule is that - in line with the our formal framework - the predictive (anti-Hebbian) term uses the previous state of the network, before the new biases (novel input/evidence) were applied.

import subprocess
from IPython.display import Image, display

# Run pyreverse to generate a single UML diagram focusing on State classes, ignoring others
subprocess.run(['pyreverse',
                '-o', 'png',
                '--colorized',
                '-p', 'network_state', # Project name
                '-ASmy', # Show Attributes, Methods, builtins, associations
                'simulation/network.py'])

# Display the generated UML diagram
display(Image(filename='classes_network_state.png')) # Match project name

Format png is not supported natively. Pyreverse will try to generate it using Graphviz...
